| Product Name: | 5 in 1 SPI+DMX LED Controller (WiFi+2.4G) |
|---|---|
| Model No.: | SPIW5 |
| Input Voltage: | DC5V~24V |
| Output Current: | Max 10A |

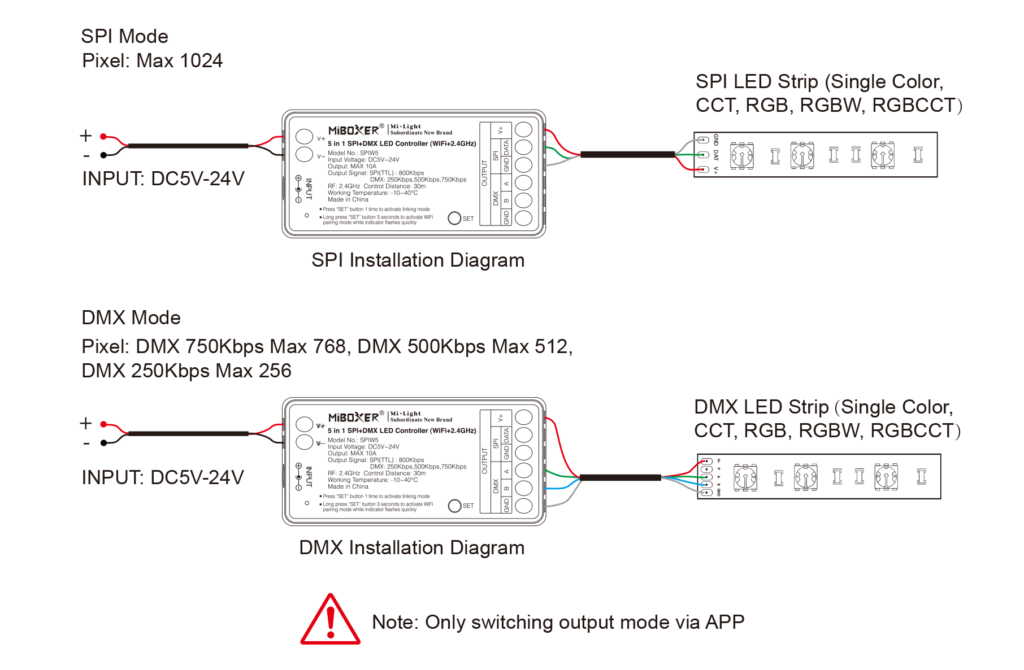

| Output signal: | SPI(TTL) 800Kbps (Max 1024 Pixel) DMX: 250Kbps(Max 256 Pixel) DMX: 500Kbps(Max 512 Pixel) DMX: 750Kbps(Max 768 Pixel) |
| Standby current: | 20mA |

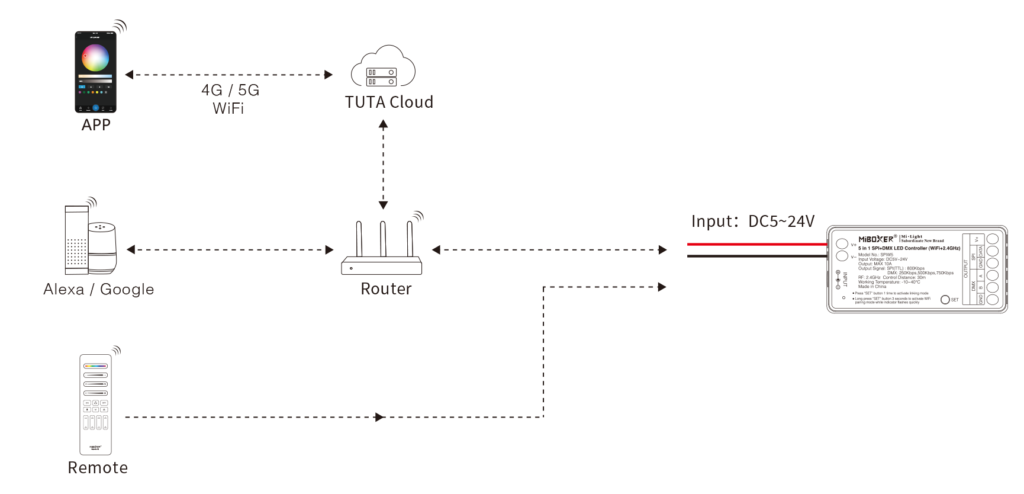

| Protocol: | WiFi + 2.4GHz RF |
| Control Distance: | RF: 30m |
| IP Rate: | IP20 |
| Working Temperature: | -10~40°C |

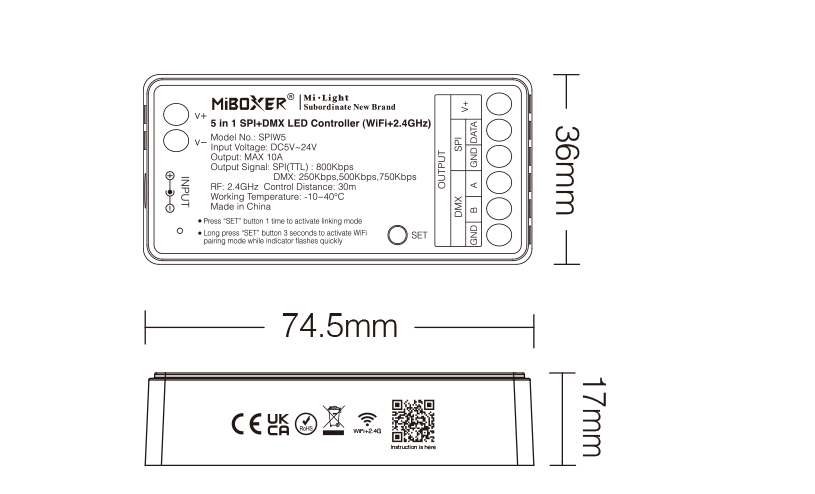

| Dimension: | 74.5*36*17mm |
| EMC Standard (EMC): | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety Standard (LVD): | EN 62368-1; 2020+A11;2020 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
| Warranty: | 5 Years |
5 in 1 SPI+DMX LED Controller (SPIW5) WiFi+2.4GHz
3 in 1 Mini SPI LED Controller (SPIR3-M) 2.4GHz
Εγγραφή για να δείτε τιμές
5 in 1 SPI LED Controller (SPIW5-4) WiFi+2.4GHz 4-Channel
Εγγραφή για να δείτε τιμές
5 in 1 SPI+DMX LED Controller (SPIW5) WiFi+2.4GHz
Κωδικός προϊόντος: 123-032
Εγγραφή για να δείτε τιμές
Επιπλέον πληροφορίες
| Βάρος | 0,046 κ. |
|---|
